Thankyou Vlad, makes me feel like I’ve finally made it!  You’ve tricked me into starting a wiki post, in the FAQ page.

Right, your BTW made me think to look in the Therion Book (if all else fails, read the instructions).

Page 17 clears up the mystery of when Therion assumes a ‘cave’ if none is defined, but I think there are other cases.



All this looking at cave-list has made me realise I have been defining caves in the wrong place, the lowest level trip surveys.

I should be defining them in the next level up, the cave surveys – obvious really.

I will play with that for a bit, and I am hoping it does not change the behaviour.



Bruce



From: Therion [mailto:therion-bounces at speleo.sk] On Behalf Of ???????? ???????? via Therion
Sent: Sunday, 28 January 2018 7:54 PM
To: List for Therion users <therion at speleo.sk>
Cc: Владимир Георгиев <vld.georgiev at gmail.com>
Subject: Re: [Therion] Экспорт в KML - export cave-list html and kml



Bruce

Very good test and illustrations. You are my Therion guru :)

Using both markings seems to be a good way to separate the "cave" (main entrance marked on the survey command) from the secondary entrances (marked with station commands), and to switch the secondary ones on/off in the lists.


​Btw​, if you use -surveys off it hides the entrances, but only if you have defined a "cave main entrance" in the survey. If there is no main entrance, it still shows all the secondary ones defined with station.



Would you have the time to put your description and screenshots in the wiki? This is good information have.

Vlad





On Sun, Jan 28, 2018 at 4:45 AM, Bruce Mutton via Therion <therion at speleo.sk <mailto:therion at speleo.sk> > wrote:

Sorry С уважением, I may have taken over your post!



> I suspect the kml exports are not reporting the hierarchy however.

I was wrong, export cave-list -fmt kml does report the full hierarchy, and may even behave better than the html output.

But it is a bit complicated – I did some testing…



Using this general form of survey definition…

survey 01 -title “Some Cave name” -entrance 1

#defining the entrance here as part of survey definition tells Therion ‘it is a cave’

  centerline
    cs lat-long
    fix 0 11:22:33.4 22:33:44.5 1234  # set the GPS coordinates and elevation of station 0
    station 3 "Some other entrance name" entrance

      # Mark station 3 as another entrance of ‘Some Cave name’ cave, and display it’s name also

    …

  endcenterline

endsurvey



And using these exports….



#html

export cave-list \

  -surveys on   \ # on = show survey, cave hierarchy, & entrances so long as location is on,

                  # off = show caves only, not entrances, no hierarchy

  -location on \  # on = show cave coords, and entrance coordinates only if surveys are on

                  # off = no coordinates

   -output ./Output/RiwakaSystemCaves.html



#kml

export cave-list \

  -surveys on   \ # on = show survey, cave & entrances hierarchy

                  # off = show caves only, not entrances, no hierarchy

  -location on \  # on|off = no difference

   -output ./Output/RiwakaSystemCaves.kml



Some examples using variations of the above.  In outputs below there are four caves explicitly defined; H-Hawkes Cave, Hawkes Kairuru Middle Cave, Kairuru Cave, Kairuru 3030.  And one cave that Therion has deduced as it is implied by the survey structure; Ngarua cave, Takaka Hill.  (Unfortunately I have not been disciplined with naming, so apologies that it is confusing).



“Kairuru 3030” is defined as a cave, and it has two entrances defined in the centrelines (that are therefore part of Kairuru 3030 Cave, which has three entrances in total).

It is one of many caves in a Therion project that the outputs below are taken from.

Here the word ‘cave’ is used to mean the main entrance (ie ‘cave’ is an entrance and a cave, whereas ‘entrance’ is just an entrance that is usually a part of an already defined cave).



HTML Outputs

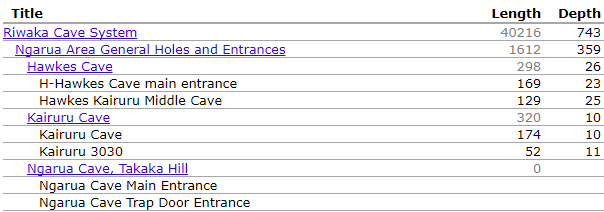

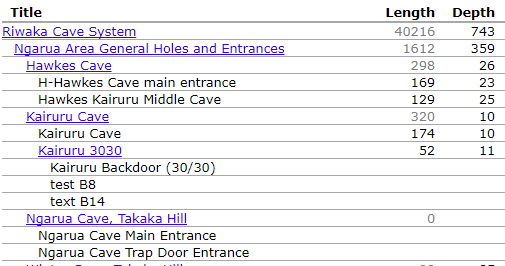

Html surveys on location on (the survey, cave and entrance hierarchy is shown.  Caves have a length reported, entrances do not)





Html surveys on location off (the survey and cave hierarchy is shown, but not entrances*.  Caves have a length reported, entrances do not)



*  Could this be a bug? Maybe, maybe not.

The last two records ARE entrances, but they have no survey legs associated, they are gps fixes only.  Maybe that is why Therion treats them differently and displays these but not others.

Therion has used the survey hierarchy to infer it is a cave called “Ngarua Cave, Takaka Hill” even though there is no cave entrance defined in the survey definition.

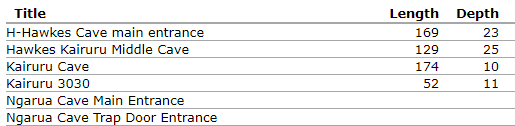

Html surveys off location on (No hierarchy, caves only, no entrances – except fixed entrances, has coordinates columns)

Html surveys off location off (No hierarchy, caves only, no entrances – except fixed entrances, no coordinates)





KML Outputs



Kml surveys on location on (the survey, cave and entrance hierarchy is shown.  Does not distinguish bottom level records as either cave or entrance, could be either)

Kml surveys on location off (same)





Kml surveys off location on,

Kml surveys off location off (both look the same, both contain coordinates - kml would be boring without locations!)





Hope that helps :)
