[Therion] Centerline and splay shots in GIS shape file

[Stacho Mudrak]

Hi Ola,

is there a specific need to show splay shots in associated scraps? We have
not yet needed it in PDF maps. Shots are basically part of 3D model SHP
export (export model -o cave.shp), where all necessary attributes are
associated with it (splay, surface, duplicate, approximate).

Best regards
S.

On Mon, 23 Dec 2024 at 23:29, Ola Löfquist <ola.lofquist at gmail.com> wrote:

> Thank you Stacho!
>
> (I answer here in my original thread to keep the history)
>
> To be clear, I still think the splay shots should be exported to the GIS
> shapefile. I just think they should get their own value "splay-shot" under
> _TYPE (for reference, see the attached picture in my original message).
>
> //Ola
>
>
> *Stacho Mudrak wrote:*
> Hi Ola, unfortunately, I was too busy to investigate your issue in
> December.
> Your issue seems like a bug - at least, when we export scrap in PDF, splay
> shots are ignored and not exported. Same should be the case for exporting
> GIS shapefiles.
> I have fixed it in the code.
> HTH, S.
>
> Den sön 1 dec. 2024 kl 21:10 skrev Ola Löfquist <ola.lofquist at gmail.com>:
>
>> Hi
>>
>> When I export the therion project as a shape file for GIS, both the
>> centerline and splay shots are grouped under the attribute TYPE -->
>> centerline. I was expecting the splay shots to have its own category. Is
>> this the expected behavior? If so, is there a way to only export the
>> centerline?
>>

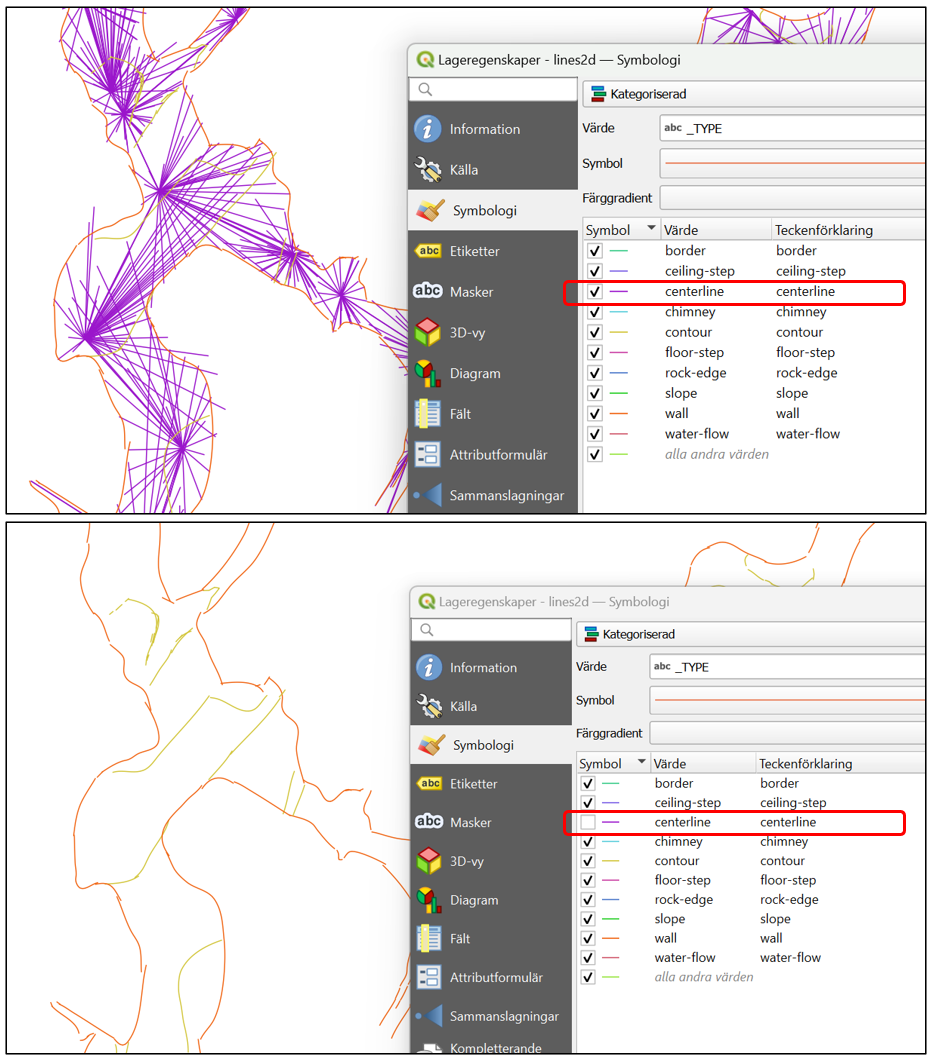

>> See attached screenshots from QGIS.
>>
>> These are my lines of code in thconfig:
>> # ESRI ARCMAP
>> export map  -projection plan \
>>   -output ../Output/shape2d  \
>>   -enable all \
>>   -format esri
>>
>> Kind regards
>> //Ola Löfquist
>> Sweden
>>
>> [image: Qgis - Centerline.png]
>>
