[Therion] Centerline and splay shots in GIS shape file

[Ola Löfquist]

Hi

When I export the therion project as a shape file for GIS, both the
centerline and splay shots are grouped under the attribute TYPE -->
centerline. I was expecting the splay shots to have its own category. Is
this the expected behavior? If so, is there a way to only export the
centerline?

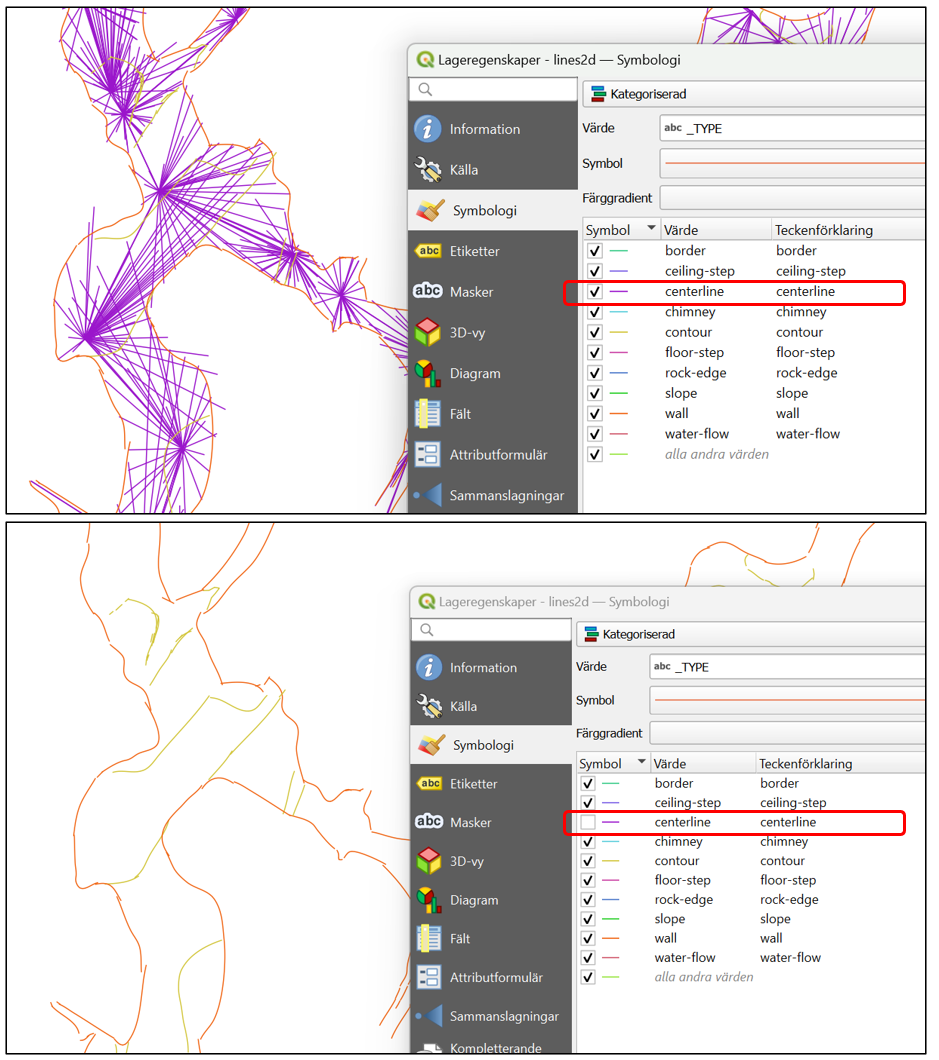

See attached screenshots from QGIS.

These are my lines of code in thconfig:
# ESRI ARCMAP
export map  -projection plan \
  -output ../Output/shape2d  \
  -enable all \
  -format esri

Kind regards
//Ola Löfquist
Sweden

[image: Qgis - Centerline.png]
