[Therion] Fixed station visibility inconsistent in offset map

[Bruce Mutton]

Good afternoon (or morning)



I'm wondering why station visibility is inconsistent when maps are offset?

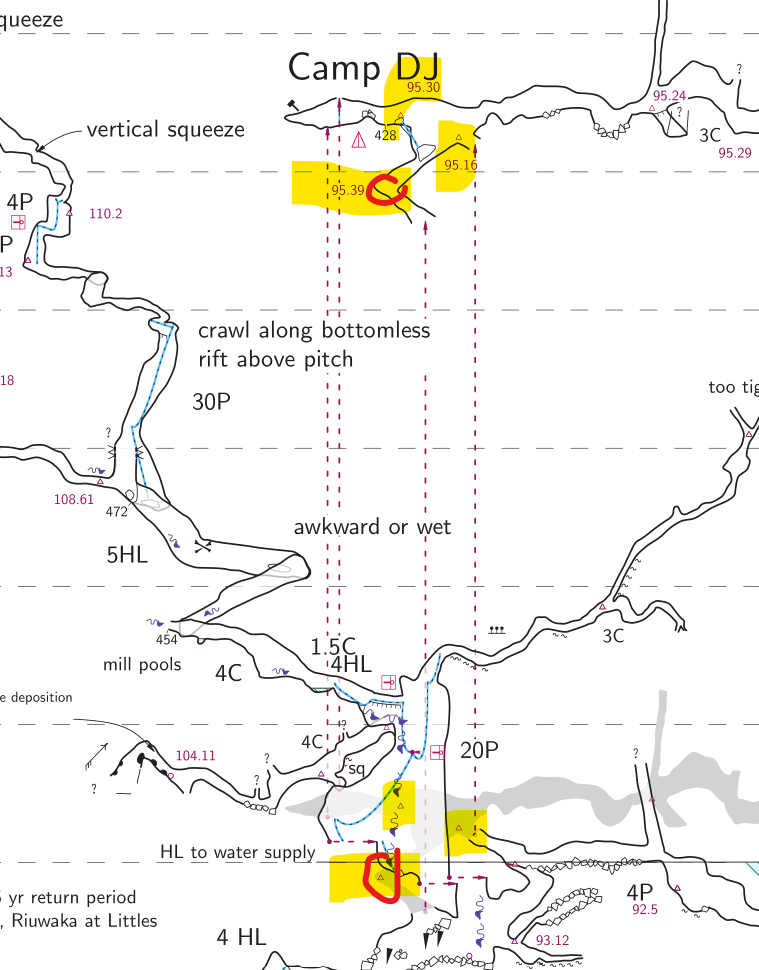

Below is an example where all survey stations of type fixed are shown in
both the previewed  (grey) passage and in the offset passage.

Except that one of the stations is not shown in the offset passage (circled
in red).  Why should that one be different?

Using Therion 6.1.8



There are a number of sub-maps in the image.  All are maps-of-scraps except
one is a map-of-centrelines, which explains why the stations are visible in
the (grey) previewed passage.  If I remove the map-of-centrelines, the
previewed stations are not displayed (as is to be expected).



Regards

Bruce
