[Therion] Multiple caves on one map with an offset

[Bruce Mutton]

Bill

As Martin suggested, you just need to define a top-level map, and select
that for output.



Here is a snip of a top level map that is part of a set of maps I have used
to highlight chronology in atlas outputs.



map 2009-2011PlanMap \

  -title "MiddleEarth 2009-2011 Plan" \

  -projection plan

  preview above 2017-PlanMap

  preview above 2014-2015-PlanMap

  preview above 2013-PlanMap

  preview above 2012-PlanMap



  #Deck Extension

  DB-DeckExtensionPlan at MiddleEarth

  DD-SandyWayPlan at MiddleEarth

  DE-BermudaTriPlan at MiddleEarth

  DF-DeckEndPlan at MiddleEarth

  DO-UpperBermudaPlan at MiddleEarth

  IZ-wotsumpPlan at MiddleEarth



  preview below 1995-2008PlanMap

  preview below 1983-1994PlanMap

  preview below 1979-1982PlanMap

  preview below 1974-1978PlanMap

endmap



Your relationship of scraps and maps to surveys is different to what I use,
so the namespace relationship will be different.

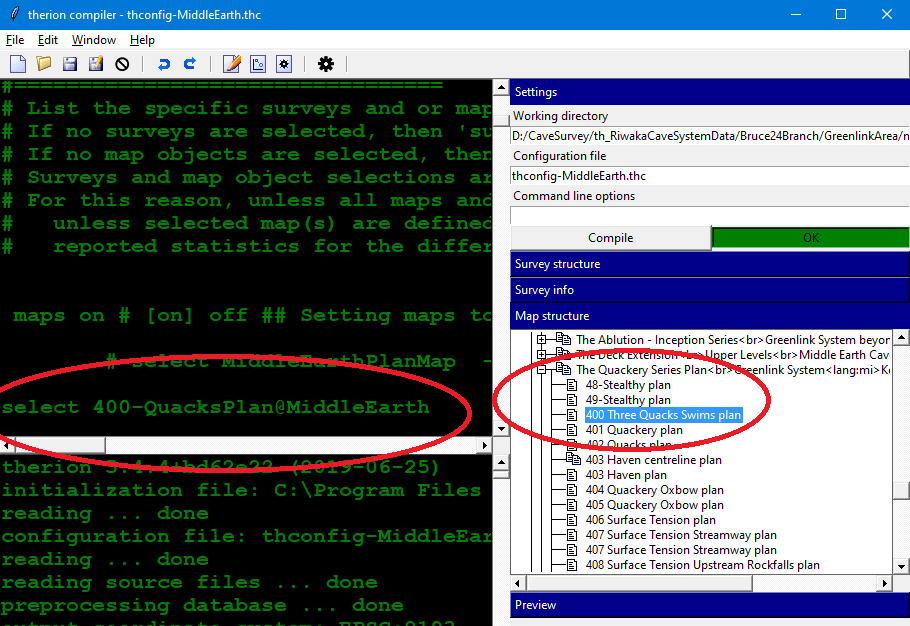

The first time, you may need to figure it out yourself, but once you have
done that you can compile your project, then in the compiler window, double
click on the component map to select it with its correct path.





Bruce



From: Therion <therion-bounces at speleo.sk> On Behalf Of Bill Gee
Sent: Thursday, 31 October 2019 03:37
To: therion at speleo.sk
Subject: [Therion] Multiple caves on one map with an offset



Hi Bruce -



Yes, I am now referring to PDF outputs. It has not bothered me enough to
chase down the solution. I am pretty sure there is some combination of map
and select statements that will do the trick. The last time I thought much
about this, the problem I came up with was how to tell the BigCavernRanch.th
file the names of the various maps in the other .th files. I don't know how
the scope of the name spaces works in this kind of configuration.



The issue will probably become more annoying in a few weeks. We are planning
a major survey expedition to these caves for Nov 10-11, and I will have a
lot of new data to work with. The passage that I want to offset is
particularly difficult, less than 12 inches high for most of its known
length, so there are very few people who are willing to do survey in there.
At least it is in dry clay! No water to deal with.



The old maps you have may not include this passage. It takes off from the
top of Texas Dome, which is in the far north part of Allie Spring Cave. We
call the passage "Top of Texas". It runs pretty much directly above other
passages. Even with transparency it makes for a rather confused presentation
unless it is offset to the side.

--

Bill Gee






On Wednesday, October 30, 2019 2:55:37 AM CDT Bruce Mutton wrote:

> > There is one feature I have found that does not work. . One of my four

> maps has a section where two passages run pretty much the same way, one

> directly above the other. In the single-cave map I handled this by setting

> the upper passage off to the side. That does not come through to the group

> map. The two passages are drawn on top of each other.

>

>

>

> Bill

>

> I presume you are now referring to exported map pdf outputs?

>

> I was looking for something that fitted that description in an old copy of

> your Big Cavern Ranch project that I got from one of your posts last year,

> but didn't find anything.

>

> In general, if you select and export a map that has offsets defined, they

> will be honoured.

>

> I you do not specifically select a map with the offsets defined, then the

> scraps will be plotted in their true position - no offset. I do this

> intentionally for overview maps of multiple caves, as offsets at small

> scales (1:2,000, 1:10,000) provide a misleading impression of the cave.

>

> It seems like you have done this as well, perhaps unwittingly.

>

> Your source BigCavernRanch.th contains a survey named 'all' but there is
no

> corresponding map defined as far as I can see. Therefore despite each of

> those caves referenced having maps defined, they are not used - every
scrap

> defined is used instead. So no offsets.

>

>

>

> >From the Therion Book.

>

> 'select'

> Description: selects objects (surveys and maps) for export. By default,
all

> survey objects

> are selected. If there is no map selected, all scraps belonging to
selected

> surveys are

> selected by default for map export.

>

>

>

> You can easily control what is plotted by defining a 'map all' in your

> BigCavernRanch.th file (or elsewhere) and then selecting it in your 'all'

> thconfig.

>

>

>

> Bruce

>

>

>

>

>

>
