[Therion] Complex model visualization with Aven, Loch, KML and Compass

[Evaristo Quiroga]

Hi,

I have been a Lary Fish Compass user for almost 20 years. One of the
reasons for having been so loyal to the program is its powerful
visualizers (Cave Viewer and CaveXO); and at a time when the data was
entered by hand its powerful data editor (Cave Editor).

In Compass there are 2 basic types of concepts: "Surveys" assimilable to
the Therion "Centerlines" and "Section", used normally to define Caves
or caves parts like Therion "Surveys".

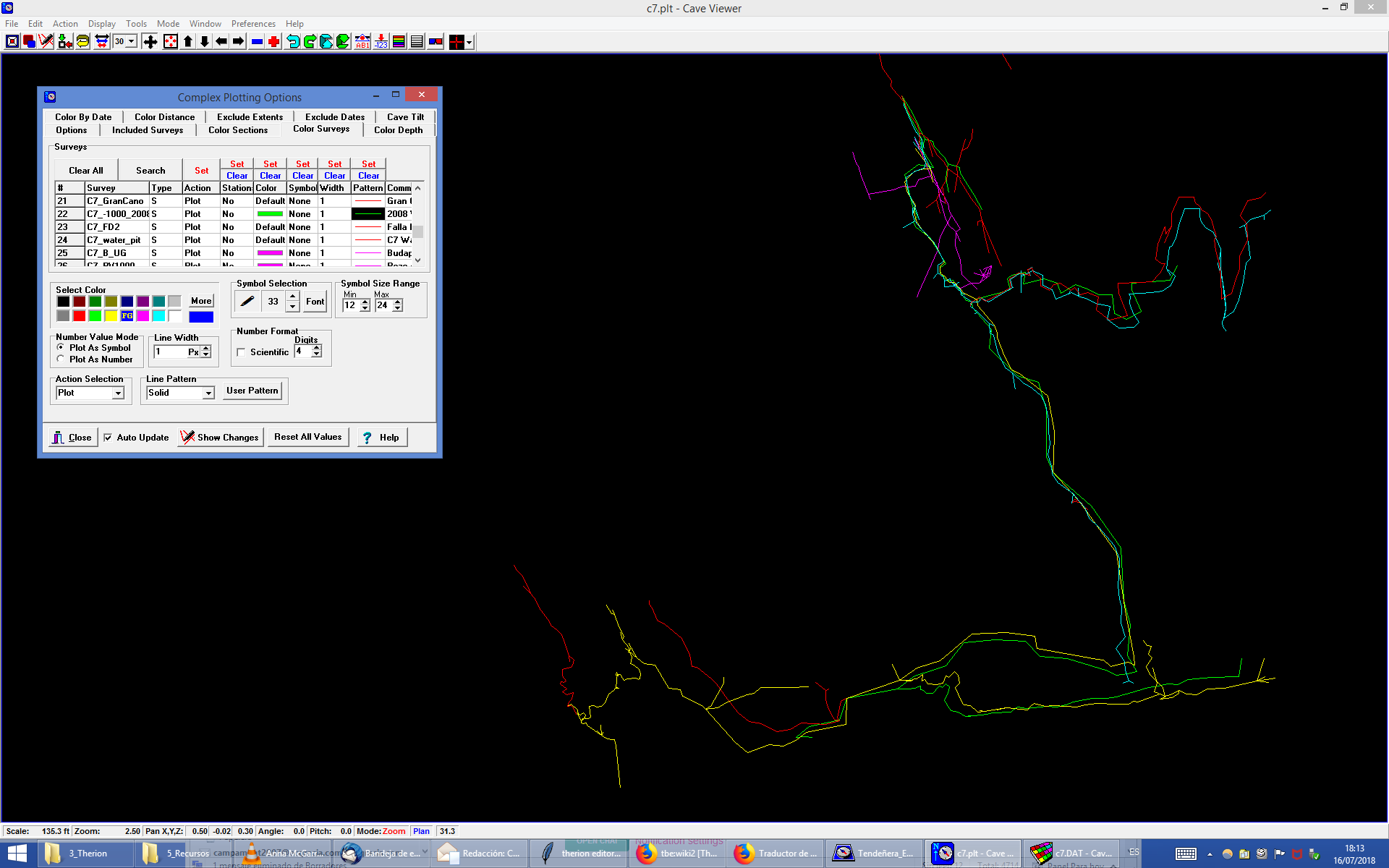

With the "Complex Plotting Options" menu of the "Cave Viewer", I  can
show, hide, color, symbol, etc, of the centerlines and walls by section,
surveys, dates and distances. It's a very powerful tool to analyses
complex caves systems.



The Compass PLT exported by Therion don't have the data structured by
Compass "Surveys" and "Sections"; so I lose the ability to use the
complex visualization options.

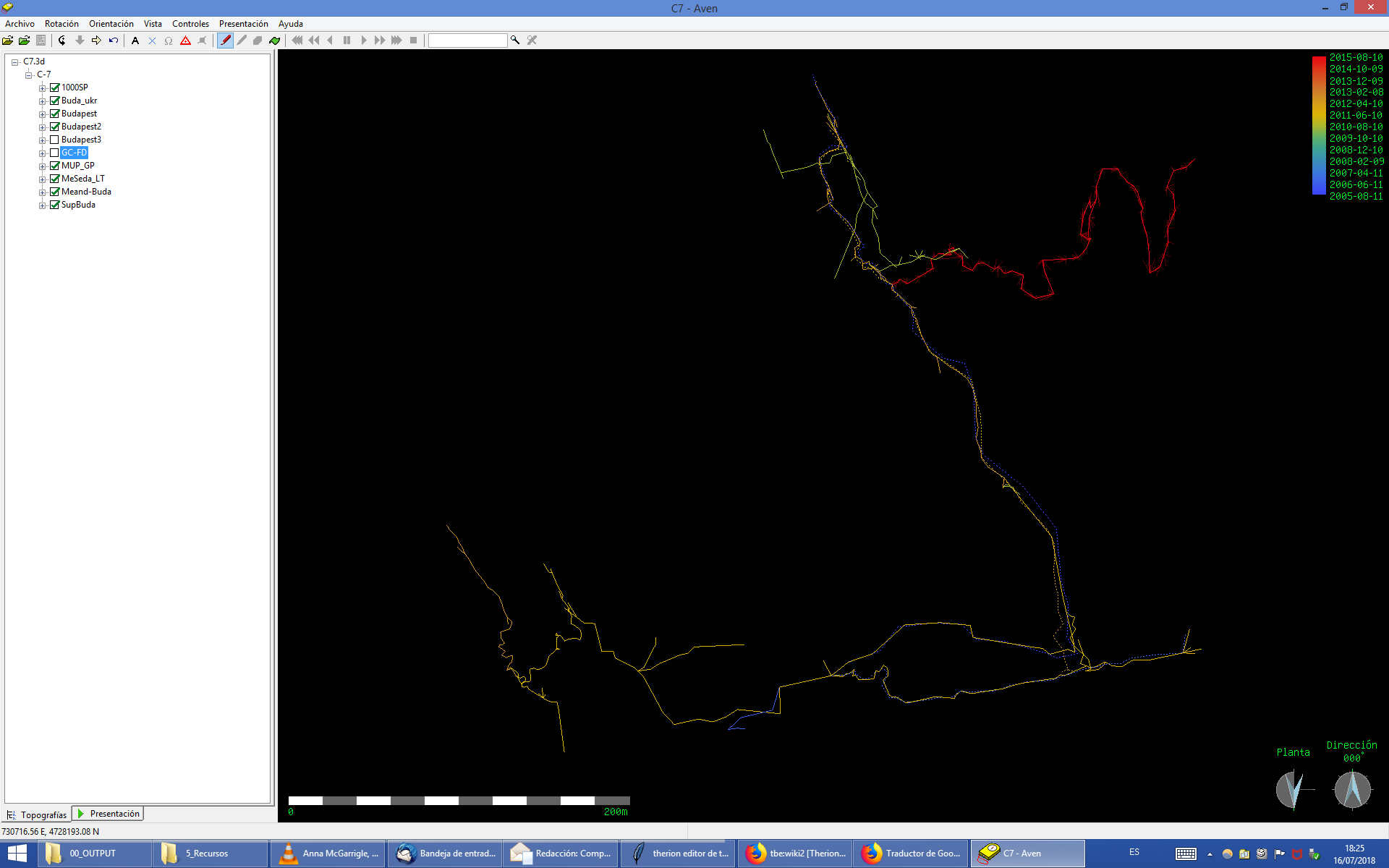

Aven is a very powerful tool too. I like the easy and intuitive rotation
controls and Error visualization. I can show/hide Therion surveys. But a
can't show/hide the "Centerlines". All my centerlines have "id" and
"title". I can't choose a color by survey. I can show/hide duplicate
shots. I can colorize by depth, date, error, slope and lenght.

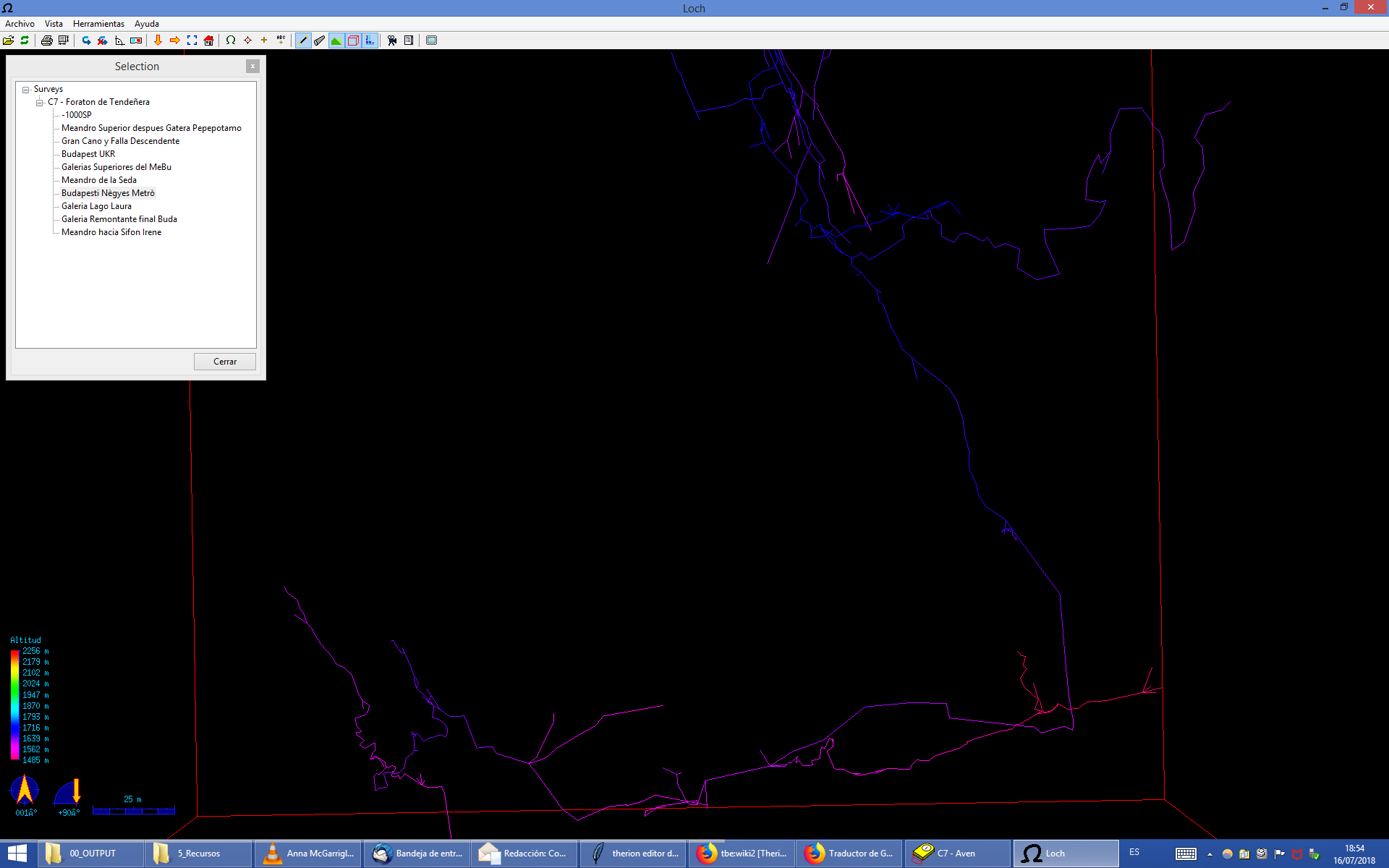

Loch, the Therion visualizer. It's a funny tool. I like the 3D walls
using the scraps walls. I can colorize only by depth and default. I
don't know if I can show/hide the the different surveys. The Selection
Menu is only informative, or you can play with it? . I can show/hide
duplicate centerline shots, but I can hide duplicate shots walls (see an
other post).

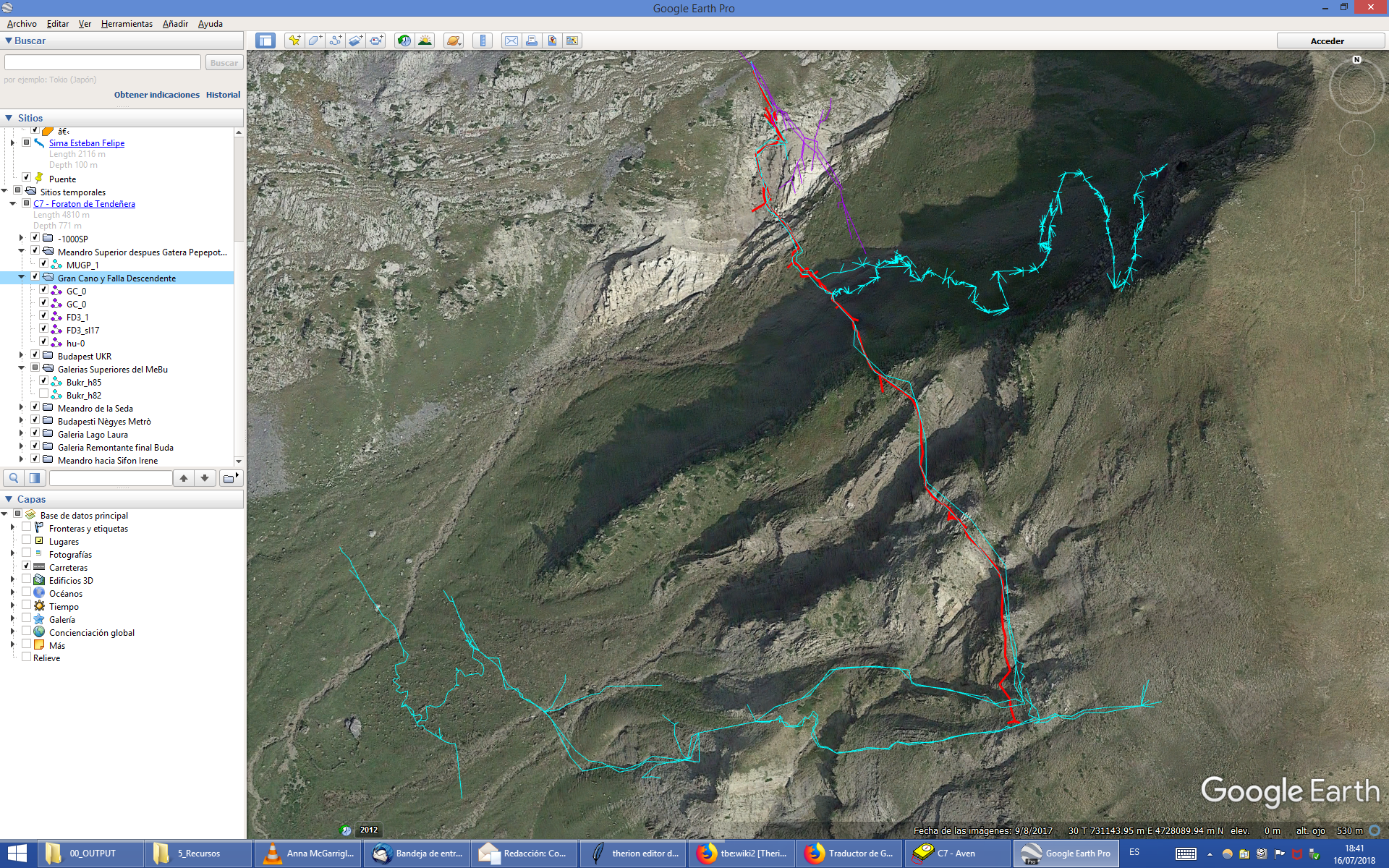

Therion export models to KML, and I can use Google Earth to visualize
it. With Google Earth I can show/hide the surveys and centerlines
(Therion don't  export the id or title, but I can recognize the name  of
the first station. I can change color and style to surveys and
centerlines. I can't view in 3d underground.



I am now an enthusiast of Therion/Survex and its derivative products:
complex loop closure with weighting  SD error by centerlines quality,
sketch morphing, complete map creation,  semantic symbology, automatic
scraps warps  when the centerline change, etc. That is why new projects
are currently with Therion, and I am transferring from Compass the data
of our jewel in the crown: Sistema Arañonera.

Now, as a basic and quick  model analysis tool, I use Aven. Loch uses it
for some 3d walls representation. But done to miss some Compass complex
visualization for analysis of complicated systems. Ideally, for me,
Therion would export PLT with a Compass "surveys" and "sections"
structure, so I could use the best of both worlds.

Best Regards,

Evaristo.
