[Therion] Altitude colors range

[Bruce]

OK, the problem is not the previews or the offsets, as it occurs in the map
examples below regardless of presence of previews or offsets.

What does seem to control whether the altitudes start at zero meters is
whether the map definition includes a survey centerline.



If part of map definition includes a survey centerline, then altitudes are
coloured from zero meters to survey maxima (a bug?).

If map definition has no survey centerline as part of it's definition, then
coloured from survey minima to survey maxima (correct behaviour).



Hence I find this behaviour manifests in maps in progress, but when they are
finished and I (usually) turn off the centerline maps, they correct
themselves.



Bruce



  _____

From: therion-bounces at speleo.sk [mailto:therion-bounces at speleo.sk] On Behalf
Of Bruce
Sent: Sunday, 4 January 2015 10:42 a.m.
To: 'List for Therion users'
Subject: Re: [Therion] Altitude colors range



Hmm, seems like there is an issue here.

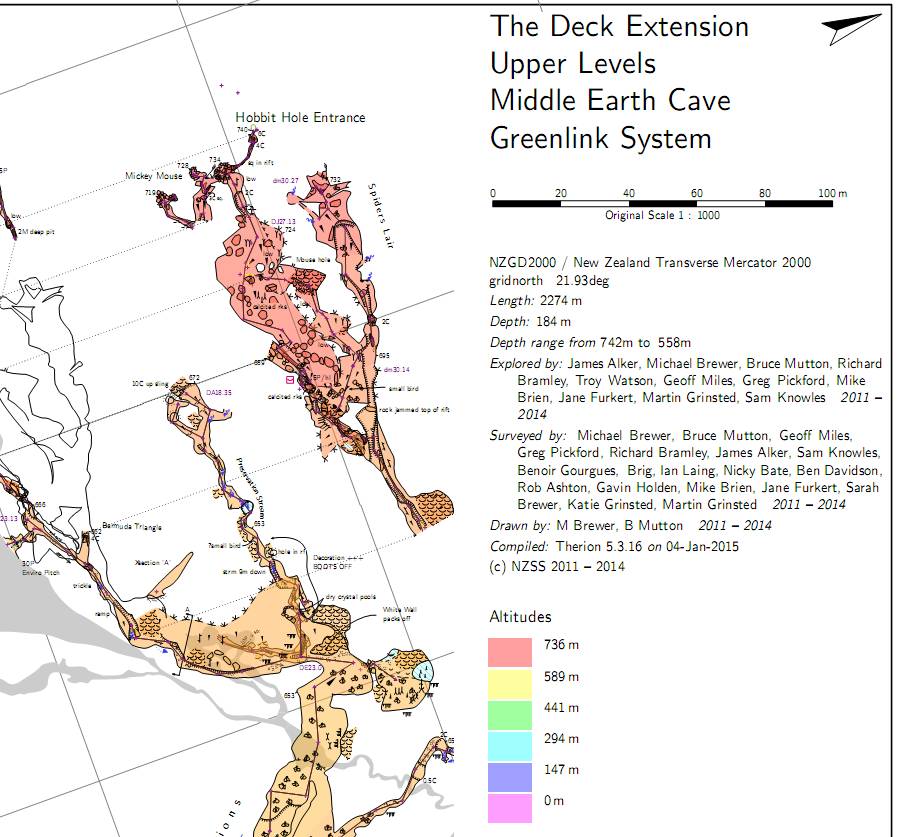

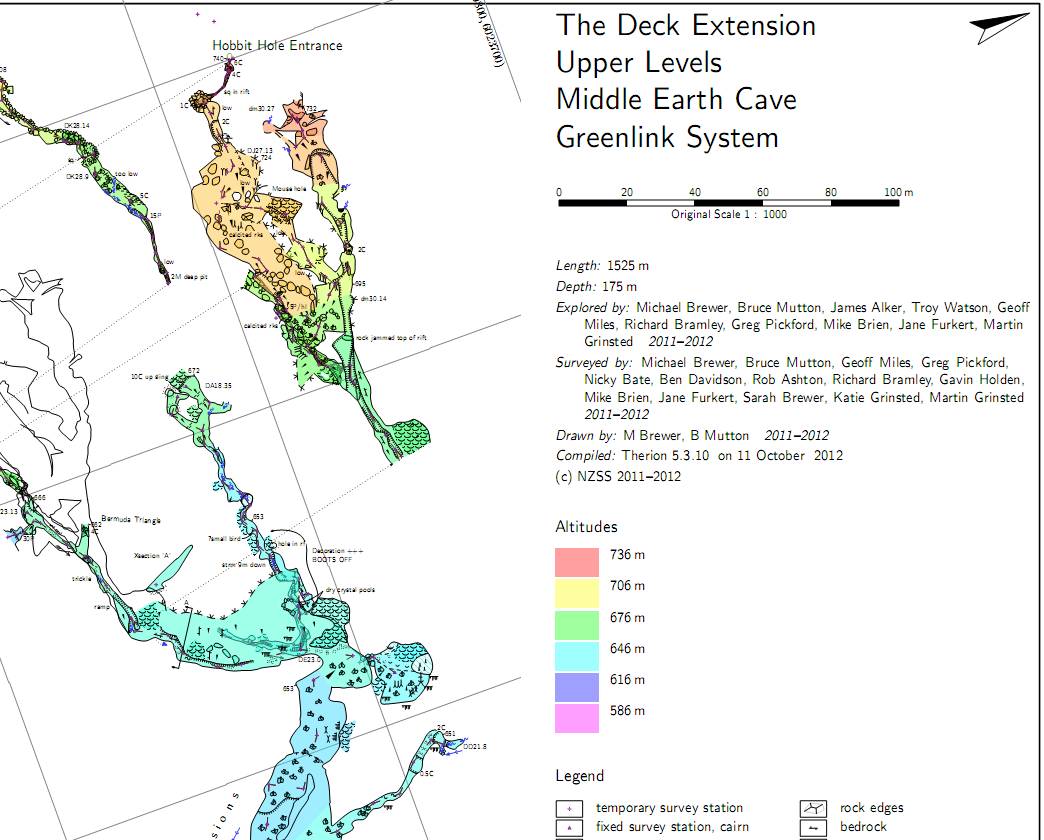

Comparing 5.3.10 map with 5.3.16 map as attached.







Not sure if it might be a side effect of something else, as I think the
colour range is OK sometimes (I think I noticed some irregularities with
5.3.15 but assumed I was imagining things at the time) - maybe the preview
below triggers it?  - I might investigate further if I get time.



Bruce



  _____

From: therion-bounces at speleo.sk [mailto:therion-bounces at speleo.sk] On Behalf
Of Marco Menchise
Sent: Saturday, 3 January 2015 8:45 a.m.
To: List for Therion users
Subject: [Therion] Altitude colors range



Hello,

I use to color maps by scrap altitude.



Lately I noticed Therion color gradient starts from 0 m altitude to maximum
cave altitude. Because caves don't reach 0 m almost all color range is
unused and most scraps are colored with similar colors. If I remember
correctly some time ago Therion used all color range because color gradient
extended from minimum cave altitude (not 0 m) to maximum.



Am I missing something? Is there a way to use all available colors?



Thanks,

Marco
