Hello

I have been using the map-connection point to link my offsets, which is
great. However one Cave I am trying to efficiently get onto one piece of
paper, would benefit from having a box around where it comes from and
where it goes. I have tried a few ideas but all the lines only appear on
the offset. The best way I have found is to  draw it in as another scrap
which is not offset as well as having it in an offset scrap, but this is
messy. It also gets rotated by the declination, but I was hoping no one

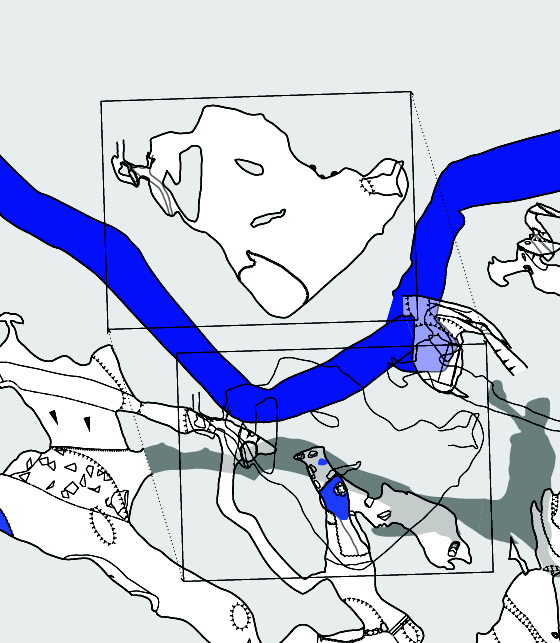

would notice this when it is printed. Attached is what I am trying to do
(I probably need to place it somewhere better)  Is there a better way of
doing it, if not, could I add this as a feature request that there is a
line type, that is drawn on both the original position and the offset.

thanks

Andrew
