[Therion] Compiling error due to encoding

[Torsten Schnitter]

Hi all

Problem found and solved.

I do use commands to import different layouts inside the thconfig file:
   input ..\_Therion\_Layouts\area_blocks_hdens.th

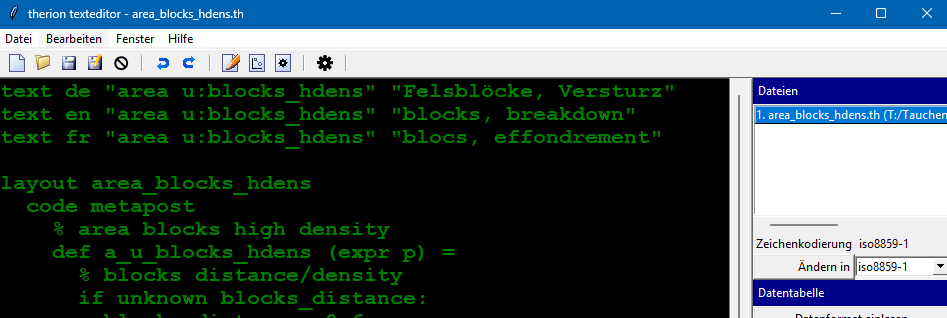

This file was edited with XTherion and saved as "iso8859-1":

As someone can see: text de .... seems to be OK (especially the
character ö)

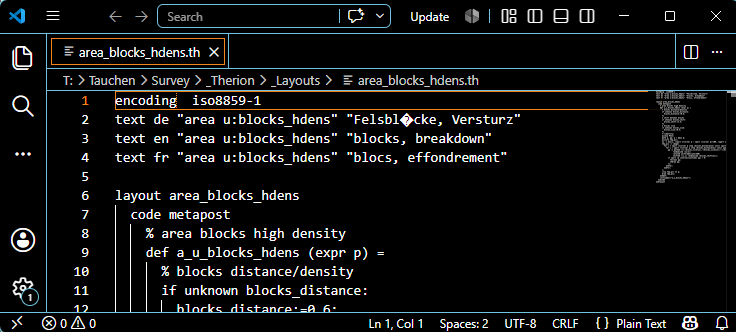

When opening this file with Visual Studio Code it looks like:

Now the character does NOT look ok (and format of file is UTF-8 as you
can see at the bottom of the screenshot)

Just changing within Visual Studio Code this single character in line 2
(not changing the format) and saving the file does solve the problem:

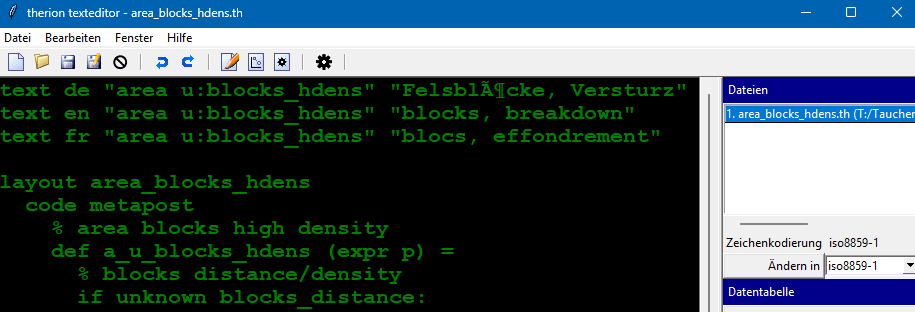

But now the file looks somehow wrong inside XTherion:

Seems to be a problem with XTherin file editor and file formats....
Attached the actual and working layout file.

For me I will not use XTherion file editor anymore and will edit files
with Visual Studio Code.

best regards, Torsten

Am 2026-05-28 12:07, schrieb knollesimage at t-online.de:

> Same behavior here:
>
> Running therion 6.4.0 on a thconfig file automatically inserts
> "encoding UTF-8" in the first line, if it is not there already.
>
> Regards, Michael.
>
> From: Therion <therion-bounces at speleo.sk> On Behalf Of Torsten
> Schnitter
> Sent: Mittwoch, 27. Mai 2026 14:00
> To: Therion <therion at speleo.sk>
> Subject: [Therion] Compiling error due to encoding
>
> Hello
>
> I have a thconfig file where I use the statement "language
> de"/"language en" to switch language for the output.
> Within the config file I use some translations like this:
> ...
> text de "point passage-height:unsigned" "Ganghöhe"
> ...
> text en "point passage-height:unsigned" "passage height"
>
> Every time I try to compile with "language de" I get an error:
>
> #################### end of metapost log file ####################
> converting scraps ... done
> C:\Program Files\Therion\therion.exe: error -- Invalid utf-8 string!
> writing xtherion file ... done
>
> As soon as I switch back to "language en" it does work.
> Therefore I'm pretty sure it is due to the special characters like 'ö'.
>
> I opened the thconfig file with an external editor (Visual Studio
> Code), removed the first line "encoding utf-8" and saved the file with
> encoding "ISO 8859-1".
>
> As soon as I open the thconfig file with XTherion and start compile the
> format is resetted to utf-8 and within the thconfig file the first line
> is replaced to "encoding utf-8" (checke this again with Visual Studio
> Code". And the error above is the result.
> Only opening the config file and closing again without any changes does
> change the encoding line in the config file to utf-8.
>
> I'm using Therion 6.4.0 and can't remeber when this behaviour/problem
> raised.
> I'm pretty sure some time ago this did work without error.
>
> Any help is appreciated. Thanks in advance!
> regards, Torsten
> _______________________________________________
> Therion mailing list
> Therion at speleo.sk
> https://mailman.speleo.sk/listinfo/therion
