[Therion] "line -close on" unexpected behaviour

[Rodrigo Severo]

Hi,

I was trying to understand how Therion deals with "line -close ON|OFF|AUTO" and found an expected behaviour for "line -close on".

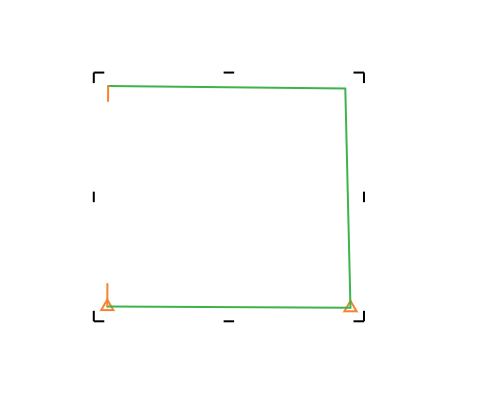

For the simple file attached (here is a print screen on Mapiah):

[image.png]

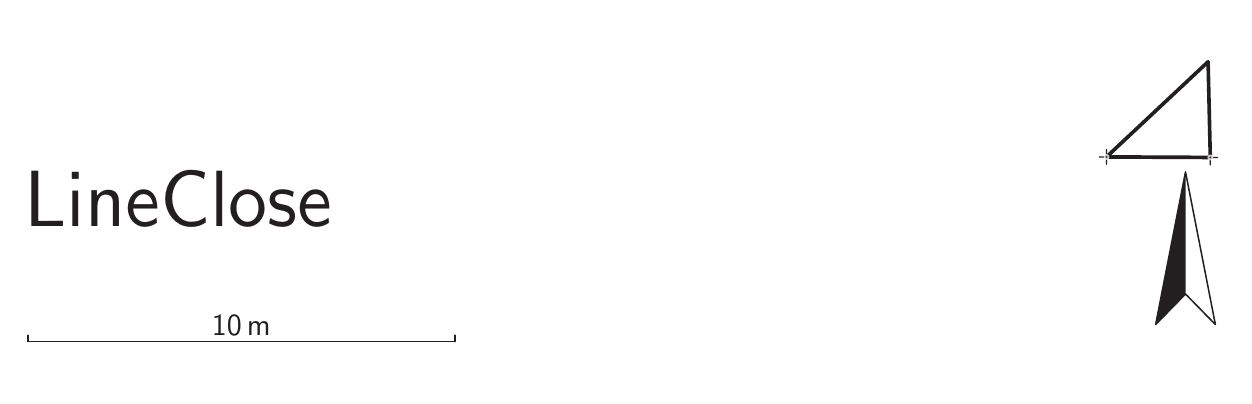

Here is the current result (again, original file attached, here a simple print screen):
[image.png]

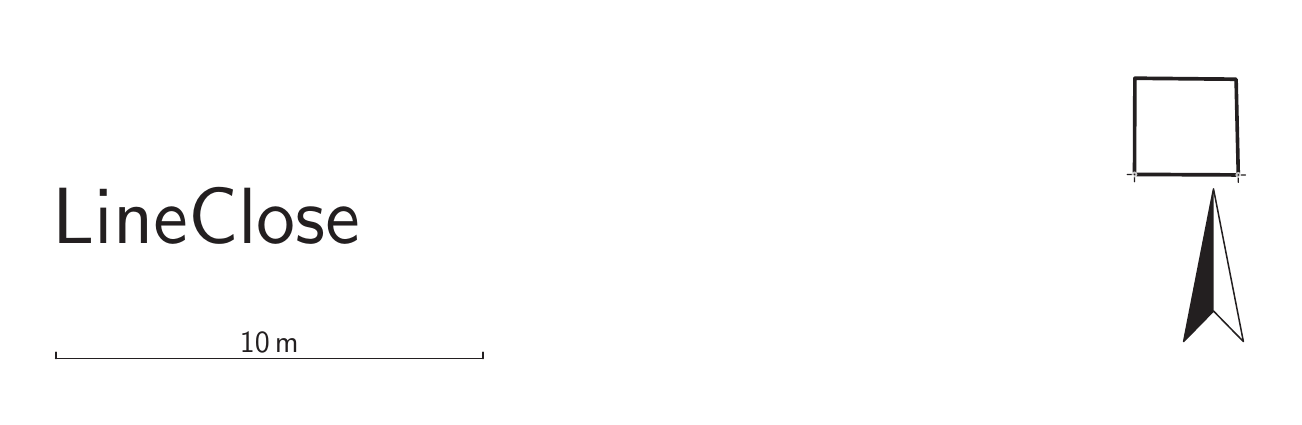

And here is want I expected, the new result with PR #741 (https://github.com/therion/therion/pull/741) produces:

[image.png]

The patch I created clearly changes the behaviour of Therion but, I believe, it changes to something more sensible.

Does this change looks like a issue to someone?

Regards,

Rodrigo
