[Therion] Customize the line below

Yann Gardère gardere.yann at gmail.com
Wed Sep 24 18:23:03 CEST 2025


Hello,!

Is there a way to customize the galleries below automatically generated
with Therion using MetaPost?
When THconfig as the actif line

  "transparency on"
  "opacity 80 "

Such as example:

def l_wall_xxxxxxx (expr P) =
    pickup PenA;
    draw P withpen pencircle scaled 1.5 dotted ...
enddef;

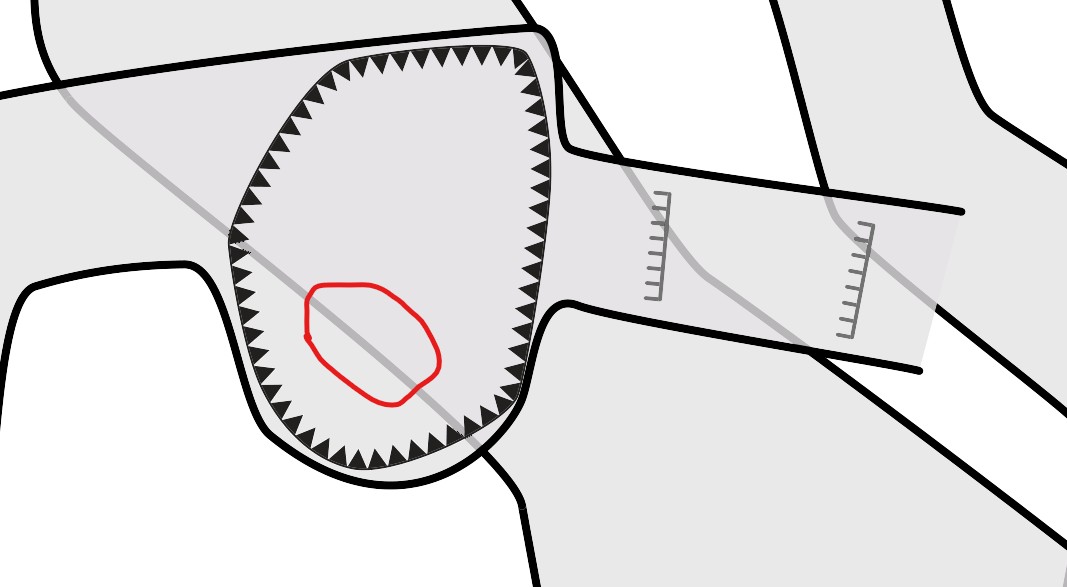

I'd like the wall line below to be automatically generated as a dotted
line, without having to define it with "underlying" in drawing mode

[image: a.jpg]

Thanks
Yann
