[Therion] metapost

[Guy Demars]

try

<size:90>Creux ...**<size:45>*<br>*Entrée ?

Guy

Le 09/10/2025 à 17:31, Yann Gardère a écrit :
> Hi community
>
> 2 questions :
>

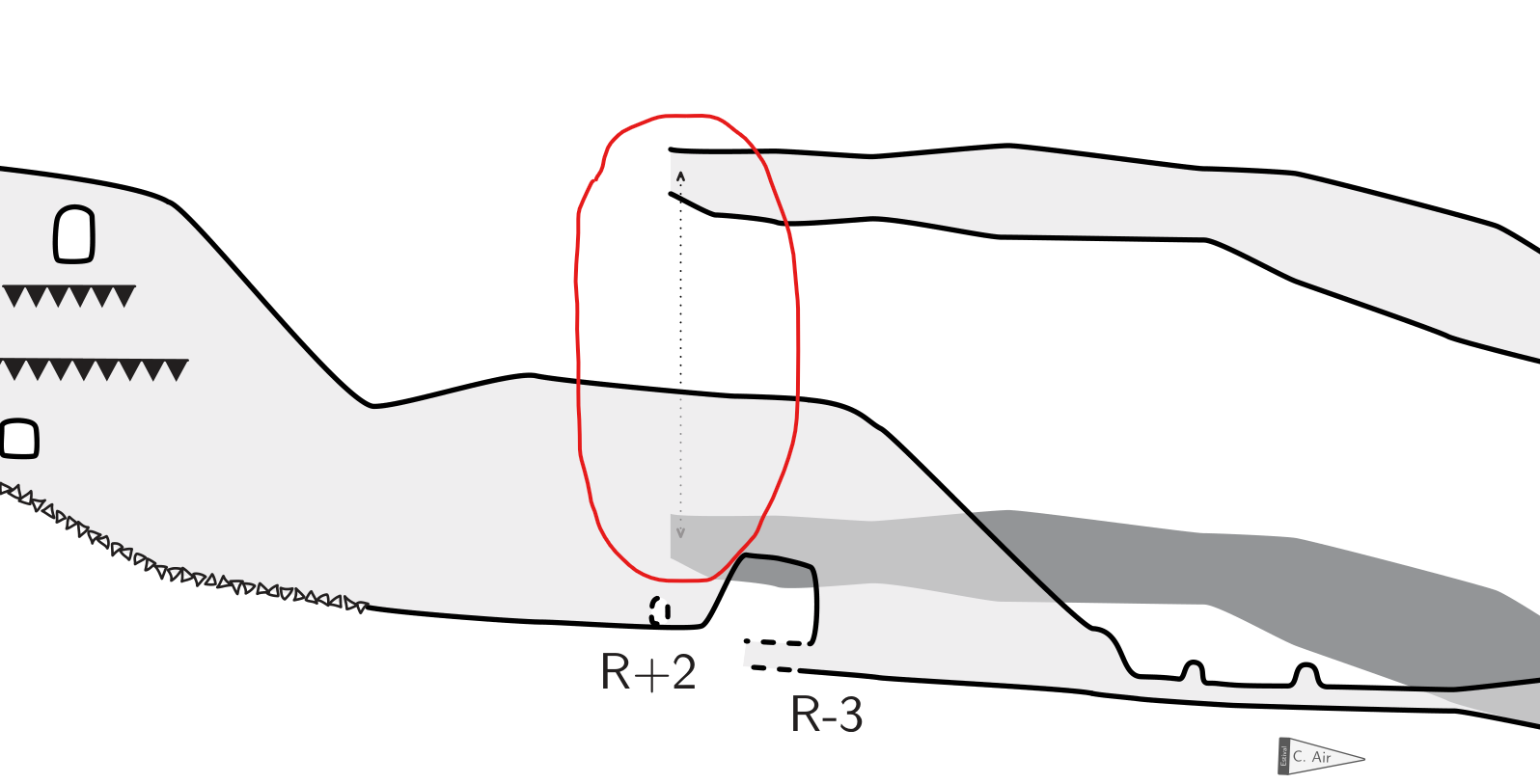

> - Is it possible to modifiy in metapost the line which is dessined
> into 2 *points* map-connection ?:
>
> 1.png
>
> - Is it possible to modify the line height of a <br> Tag in draw ?
>
> for my convenient i use this code :
>
> map MP_entree -title "<size:90>Creux ...*<br>*<size:45>Entrée"
> -projection plan
>

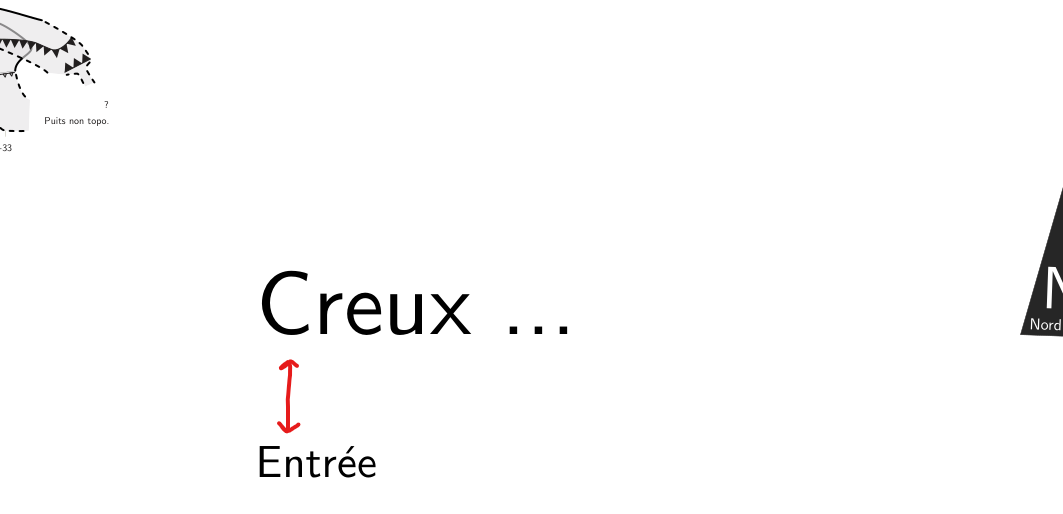

> The result
>
> 2.png
>
> But there is too much space for the <br> TAG, a solution for decrease
> space for the <br> tag?
>
> Thanks
>
> Yann
>
> _______________________________________________
> Therion mailing list
> Therion at speleo.sk
> https://mailman.speleo.sk/listinfo/therion
