[Therion] Build a map with all centerline and partial walls

[Bruce Mutton]

> It appears that adding the centerline as a survey makes Therion process the LRUDs to come up with a pseudo-wall.  I would like that to go away.  I tried adding "hide-symbol line wall" to the layout, but that made all of the walls go away.



>From the Therion Book...



walls <auto/on/off>  Turn on/off passage shape generation from LRUD data for subsequent shots. If set auto, passage is generated only if there is no scrap referencing given centreline





Add 'walls off' to your survey object. This will affect the look of your pdf and lox model.  It will probably improve the lox model as Pavel suggests.

Alternatively you could make colour map-fg = colour map-bg to hide the 'problem'.

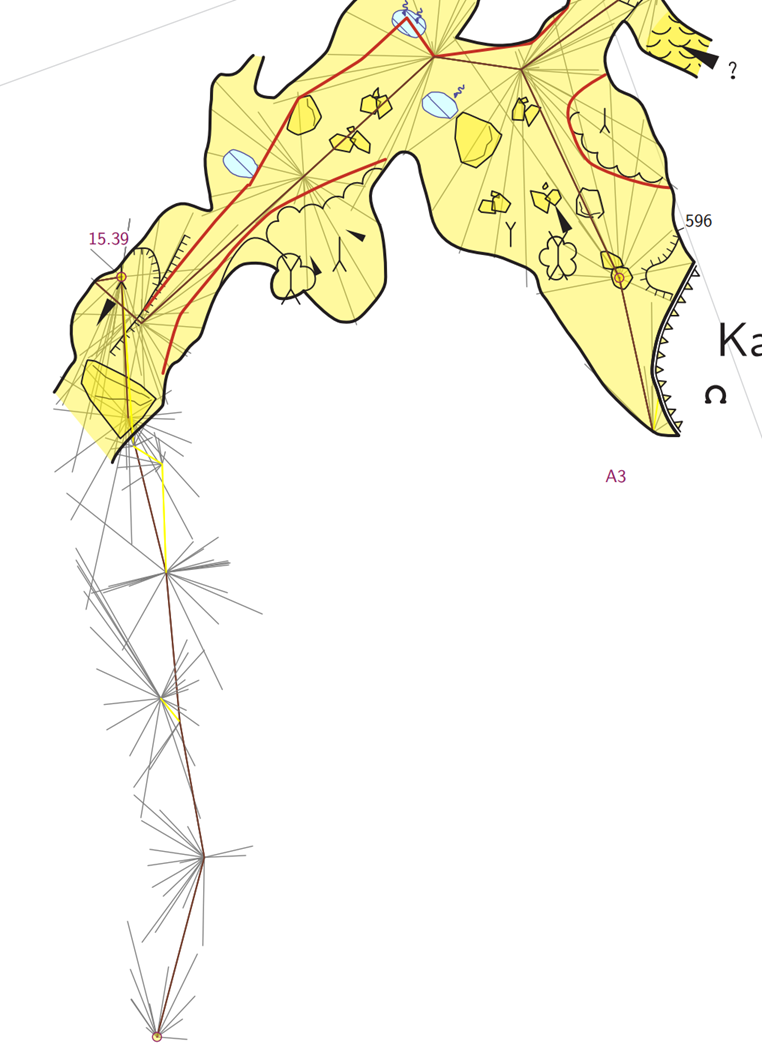

My other hint, if using a DistoX, would be to use splays rather than LRUD, then at least this type of problem is less visually conflicted. I concede that this would not be great if field notes are taken on paper.



Bruce
