[Therion] Export centerline and LR (plan) UD (section)

[Bruce Mutton]

Răzvan

Looks like you answered your question.  You have an xvi that displays left and right dimensions.

If you want these to be visible in other formats, such as pdf, then you need to set a map foreground colour that differs from the background colour.

The simplest way to do this is something like this in your layout.



colour map-fg [97 86 38] # yellow brown



Possibly you can do it directly in the export statement.  Maybe something like this (pg 61 of more or less current Therion Book – I’m not certain of the syntax)



export map -projection plan \

      -layout-colour map-fg [97 86 38] \

     -output hhh.pdf



Bruce



From: Therion <therion-bounces at speleo.sk> On Behalf Of Razvan Dumbrava via Therion
Sent: Tuesday, 23 August 2022 00:03
To: therion at speleo.sk
Cc: Răzvan Dumbravă <razvid at yahoo.com>
Subject: [Therion] Export centerline and LR (plan) UD (section)



Hello



Is there any possibility to export (in any format) the centreline and the LR (for plan)?



The data for centreline is



units length meters

units compass clino degrees

data normal from to length compass clino



    0 1 1.21 137.1 -12.8

    1 2 8.75 33.3 1.8



and the data for LRUD is separate, like this:



units left right up down meters

data dimensions station left right up down



25 1.23 16.71 16.71 1.43

10 3.72 6.73 6.73 1.67

5 1.32 4.86 4.86 1.06





When i use



export map -projection plan \

     -output hhh.xvi

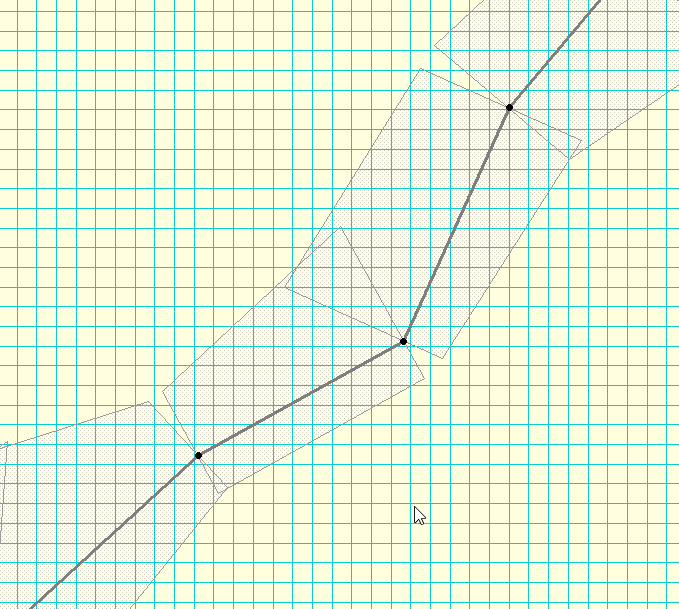

It exports someting like this, with 2 LR in every station...





Thanks!



Răzvan Dumbravă



razvid at yahoo.com <mailto:razvid at yahoo.com>
