[Therion] xtherion - Multiple background sketches

[Martin Sluka]

> 21. 6. 2021 v 23:31, Bill Gee <bgee at campercaver.net>:
>
>  "Double-right-click" is probably not an accurate description.

I apologize myself for misunderstanding. For me to move an object in an application on computer screen is always click or double click, hold and drag that object. Sorry again.

When one uses xvi file which includes transparent rectangular grid and centerline with stations and splay shots and it is on top of stack of sketches and xvi files in scrap setup one may positioned correctly a sketch very easy, because stations are visible both on xvi layer and on sketch. Double click with right button on particular station on sketch, hold right button and drag mouse you may move sketch to correct position.

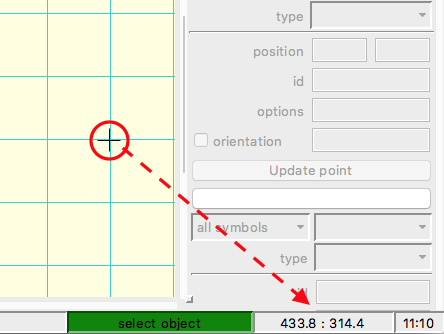

Another possible way is to use windows with coordinates of lower bottom corner of an object and change them manually. Correct coordinates you may read in right lower corner of map editor window, where the coordinates of cursor are showed.

And if one uses morphed sketches from xvi, they should fit with all stations on that sketch. If one uses extra points splay shots should fit too.

Martin
