[Therion] trouble with warped sketches drawing in the wrong place

[Jonny Prouty]

Hi Xavier,

Thanks for your reply. You bring up a good point. I ran a quick check, and
if I generate an SVG instead of a PDF, the faulty behavior also shows up. I
also opened the files on Adobe Acrobat on a Windows 10 machine, which also
shows the faulty behavior.

-Jonny

On Wed, Feb 3, 2021 at 3:58 AM Xavier Pennec <Xavier.Pennec at inria.fr> wrote:

> Hi Stacho & Jonny
>
> Yes, I had this behaviour a few month ago on windows 10, but I did not
> found yet the time to characterize the problem with a minimal example to
> ask for help.
> I will try to see if I can reproduce it with a small example as soon as I
> find time. I remember that this was also happening with previous versions
> of therion (I tested at least 5 of them), I wonder if this not coming from
> the graphics library that displays the scraps.
>
> Xavier
>
>
>
> Le 03/02/2021 à 05:58, Stacho Mudrak a écrit :
>
> Hi Jonny,
>
> I have tried with my datasets, but the placing of sketches was in all
> cases OK. Do others have also such problems?
>
> Could you please provide more details? Which OS are you running? Was it
> also a problem with some previous versions?
>
> Ideally, are you able to send me some minimal sample where it happens?
>
> Thanks, S.
>
>
>
> On Wed, 3 Feb 2021 at 00:41, Jonny Prouty <jonathanprouty at gmail.com>
> wrote:
>
>> Hello all,
>> I've been having some trouble with warped sketches lately that has me
>> puzzled. All of the sketches are offset from the generated map, but the
>> offset varies from scrap to scrap. Furthermore, the offset is applied
>> before the sketches are morphed, as the sketches are clearly being deformed
>> differently than the walls, even though they should be identical. I should
>> note that I am not applying any specific offsets to any portions of the
>> map, which consist of only a single scrap. Any ideas are much appreciated!
>> th and thconfig files are after the screenshots. Thanks very much in
>> advance!!
>>
>> Sincerely,
>> Jonny
>>

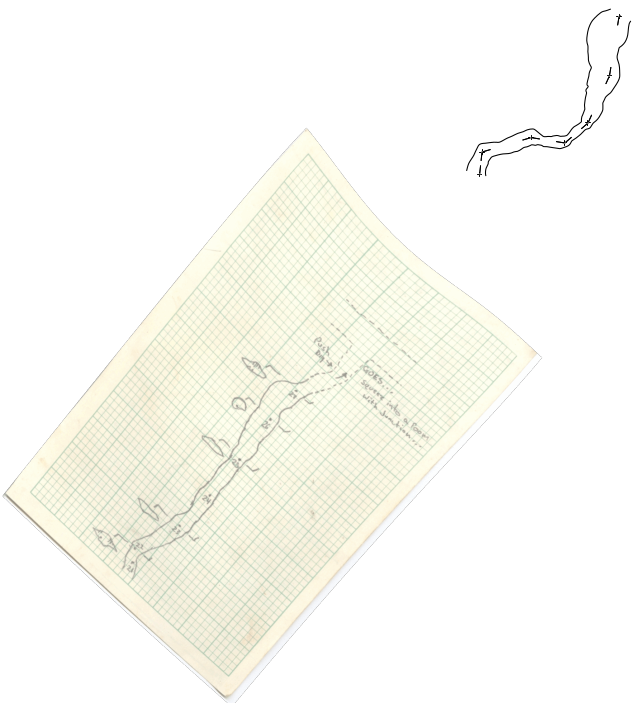

>> Example, Map 1:
>> [image: image.png]

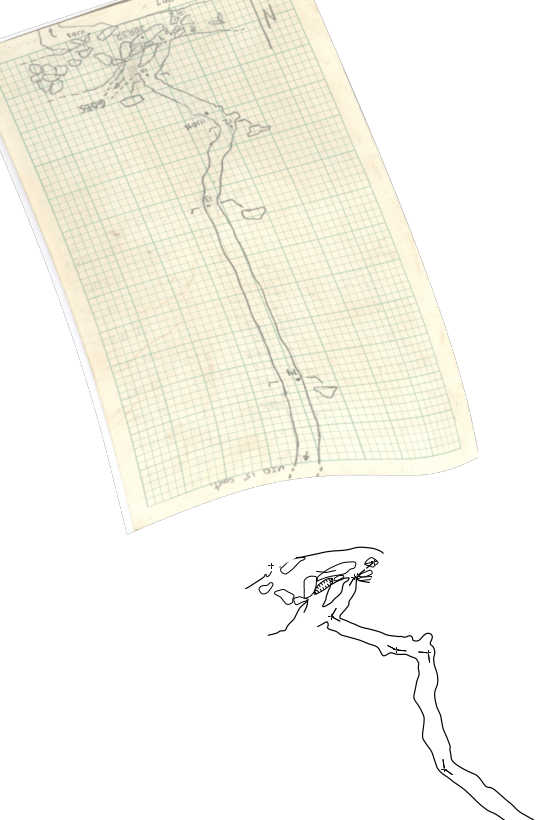

>> Example, Map 2:
>> [image: image.png]
>>
>> Output of therion -v
>>
>> therion 5.5.6 (2020-12-27)
>>   - using Proj 6.3.1, compiled against 6.3.1
>>
>> Sample th file for one of the maps above:
>>
>> survey hh
>>   import cave.3d -surveys ignore
>>   input hh2aug03.th2
>>   map scrap_hh2aug03v_pl_1 -proj plan
>>     hh2aug03v_pl_1
>>   endmap scrap_hh2aug03v_pl_1
>> endsurvey hh
>>
>> Sample thconfig file for one of the maps above:
>> layout sketch
>>     scale 1 200
>>     sketches on
>> endlayout
>> maps-offset off
>> source map.th
>> select hh
>> export map -proj plan -fmt pdf -layout sketch -o hh2aug03v_pl_1.pdf
>>
>>
