[Therion] Horrific Warping between maps where I want my lines to join

[alastair gott]

Hi Xavier, Tarquin and Therion Mailing list,

I've had a look through tarquins suggestions and tried a few, but am still struggling.
(it will teach me to try and join walls in a chamber 20m wide, should have done 20mins more surveying the first time round, and joined somewhere more sensible!)

I've got the project on http://cave-registry.org.uk/svn/Andara/Tresviso/Marniosa/therion/

I think it's openly available for people to pull off if you have SVN.

The config file (thconfig.MMaster<http://cave-registry.org.uk/svn/Andara/Tresviso/Marniosa/therion/thconfig.MMaster>) has preselected the two problem surveys:
source MarniosaMaster.th
select District9.MarniosaMaster
select alien_weaponry.MarniosaMaster

or if you want a smaller selection of files, you could just pull District9 and Alienweaponry and create a .th with the following in it.
####
survey problemcave

input alien_weaponry/alien_weaponry.th
input district9/District9.th

join District9SP1 at District9 alien_weaponry-1p at alien_weaponry

map ProblemPlan -projection plan
m1p at alien_weaponry
District9Plan at District9
endmap

centreline
equate 12 at alien_weaponry 12 at District9
endcentreline

endsurvey
####



Regards,
Alastair Gott.

AlastairGott at hotmail.com,
M: 07931779380.
________________________________
From: Therion <therion-bounces at speleo.sk> on behalf of alastair gott <alastairgott at hotmail.com>
Sent: 30 October 2019 20:26
To: Therion Mailing List <therion at speleo.sk>
Subject: [Therion] Horrific Warping between maps where I want my lines to join

Hi Therion Mailing List,

My maps are just not joining where I want them to, the walls are repellant to each other!

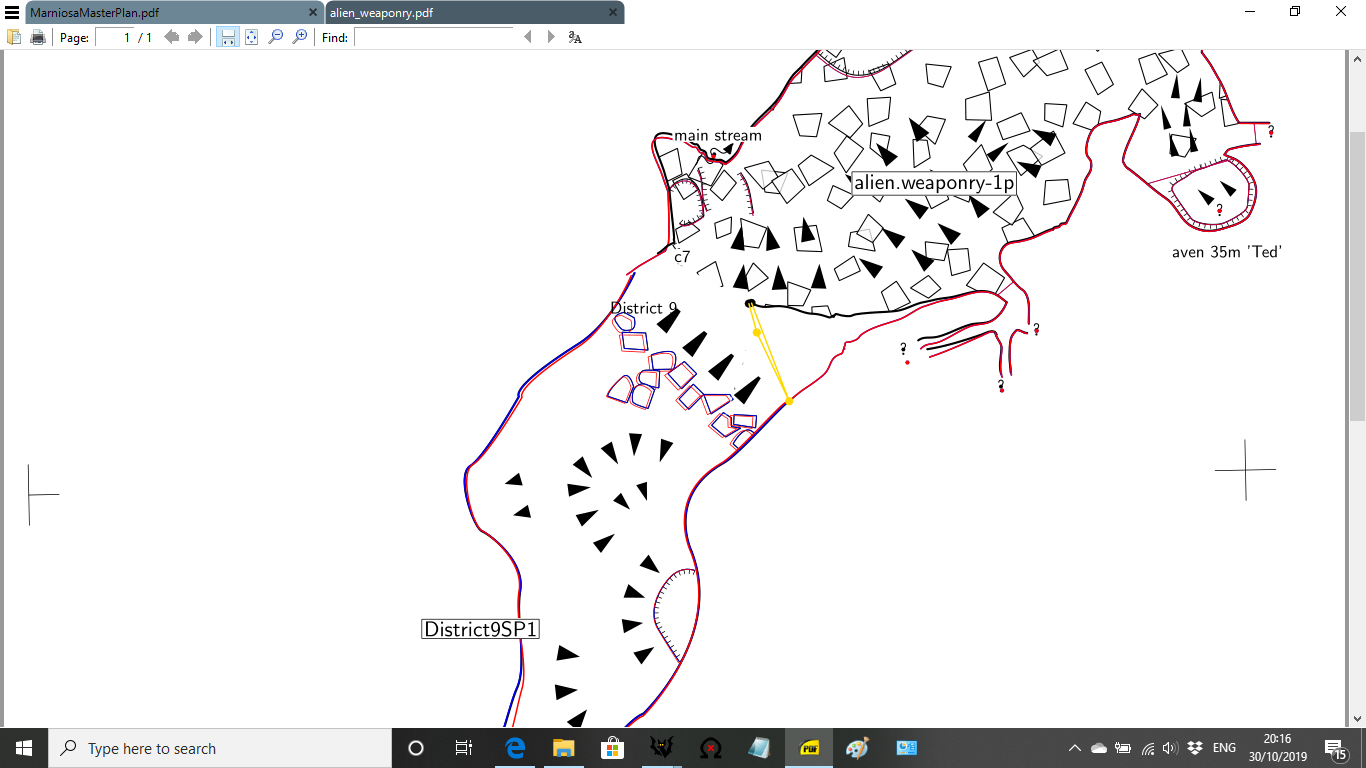

All I want to do is join the black line where i'm putting the red line, but the yellow warping lines are thrusting it away again.

If anyone has any thoughts it would be great to know them because there's something fundamentally wrong with what I'm doing!

[cid:206d78da-11f6-41f7-b5bf-6b26829ce45f]

Regards,
Alastair Gott.

AlastairGott at hotmail.com,
M: 07931779380.
