[Therion] Disconnected centrelines - Extended Elevation Control

[Bruce Mutton]

Martin

I think nosurvey will be the best compromise (when I can get the nosurveys
to stop crashing the extended elevations).

I can set it to approximate and duplicate, so that is shows up yellow and
dashed with my metapost customisation.



However



> nosurvey is nosurvey.



True, in the labyrinths of Therion maybe.

However I don't think 'nosurvey' legs are distinguished from other survey
leg types in the outputs, so not necessarily 'nosurvey' in the mind of those
viewing the outputs.

Unless I am missing something.

How is the recipient of these outputs to know that there is a 'nosurvey leg?

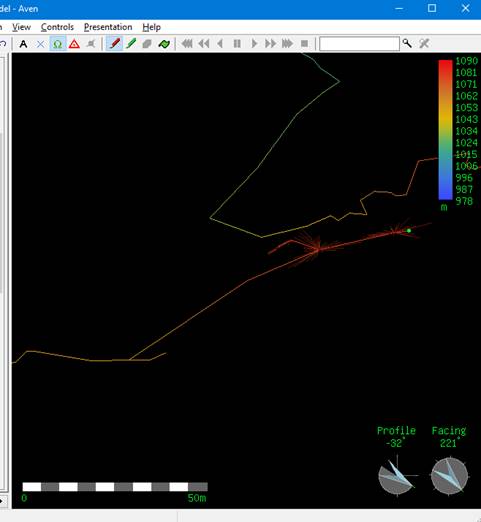

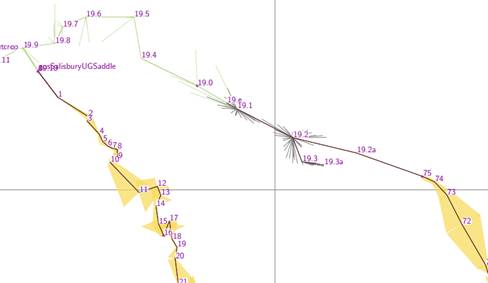

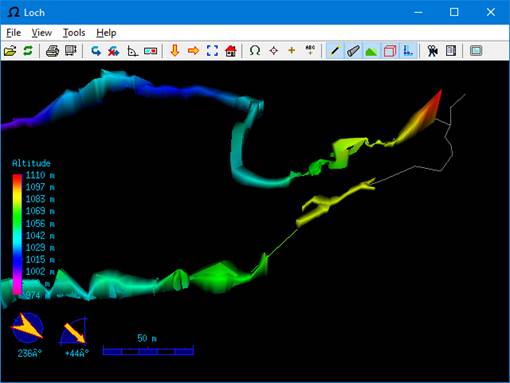

In the outputs below, there are perhaps subtle clues because I have included
splays and passage walls, but nothing that would stand out to an
inexperienced recipient.



Bruce
