[Therion] Altitude colors range

[Footleg]

I am not seeing this Bruce. I just tested with 5.3.16. My survey imports
the centreline from a Survex .3d file however, so that might make a
difference? Or maybe I am not understanding what you mean by including the
centreline in the map. I turned off the centreline using 'symbol-hide line
survey'. If I comment that out in my layout then the centreline is drawn in
the map, but my altitude range still covers only the range of my scraps.

Footleg

On 5 January 2015 at 22:40, Bruce <bruce at tomo.co.nz> wrote:

>   OK, the problem is not the previews or the offsets, as it occurs in the
> map examples below regardless of presence of previews or offsets.
>
> What does seem to control whether the altitudes start at zero meters is
> whether the map definition includes a survey centerline.
>
>
>
> If part of map definition includes a survey centerline, then altitudes are
> coloured from zero meters to survey maxima (a bug?).
>
> If map definition has no survey centerline as part of it’s definition,
> then coloured from survey minima to survey maxima (correct behaviour).
>
>
>
> Hence I find this behaviour manifests in maps in progress, but when they
> are finished and I (usually) turn off the centerline maps, they correct
> themselves.
>
>
>
> Bruce
>
>
>  ------------------------------
>
> *From:* therion-bounces at speleo.sk [mailto:therion-bounces at speleo.sk] *On
> Behalf Of *Bruce
> *Sent:* Sunday, 4 January 2015 10:42 a.m.
> *To:* 'List for Therion users'
> *Subject:* Re: [Therion] Altitude colors range
>
>
>
> Hmm, seems like there is an issue here.
>

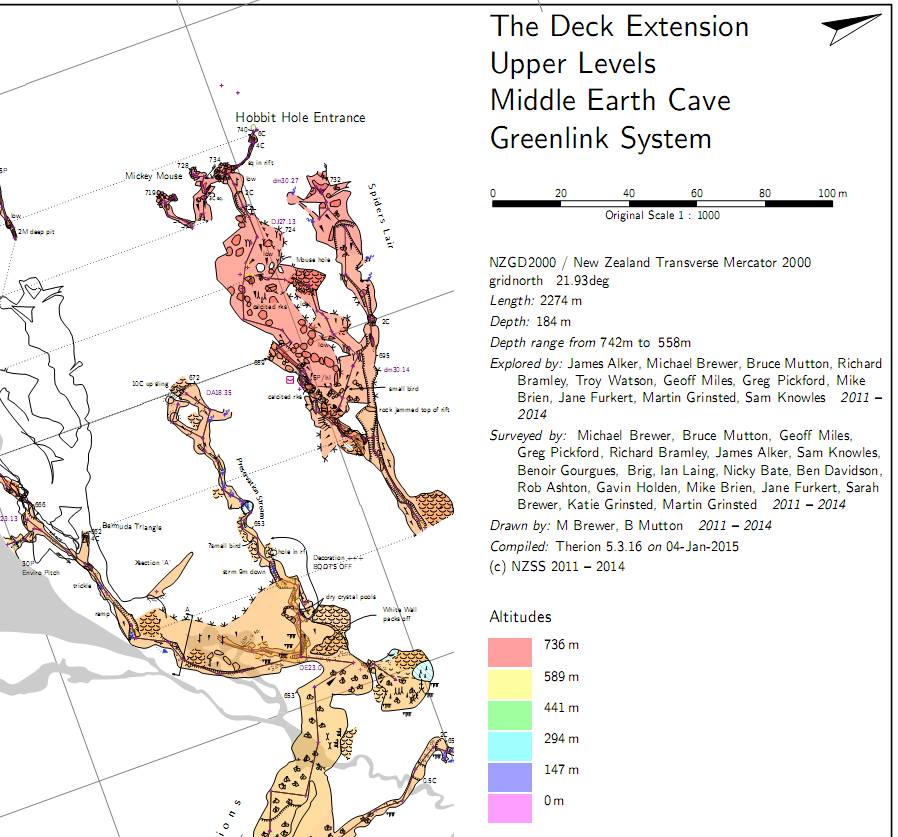

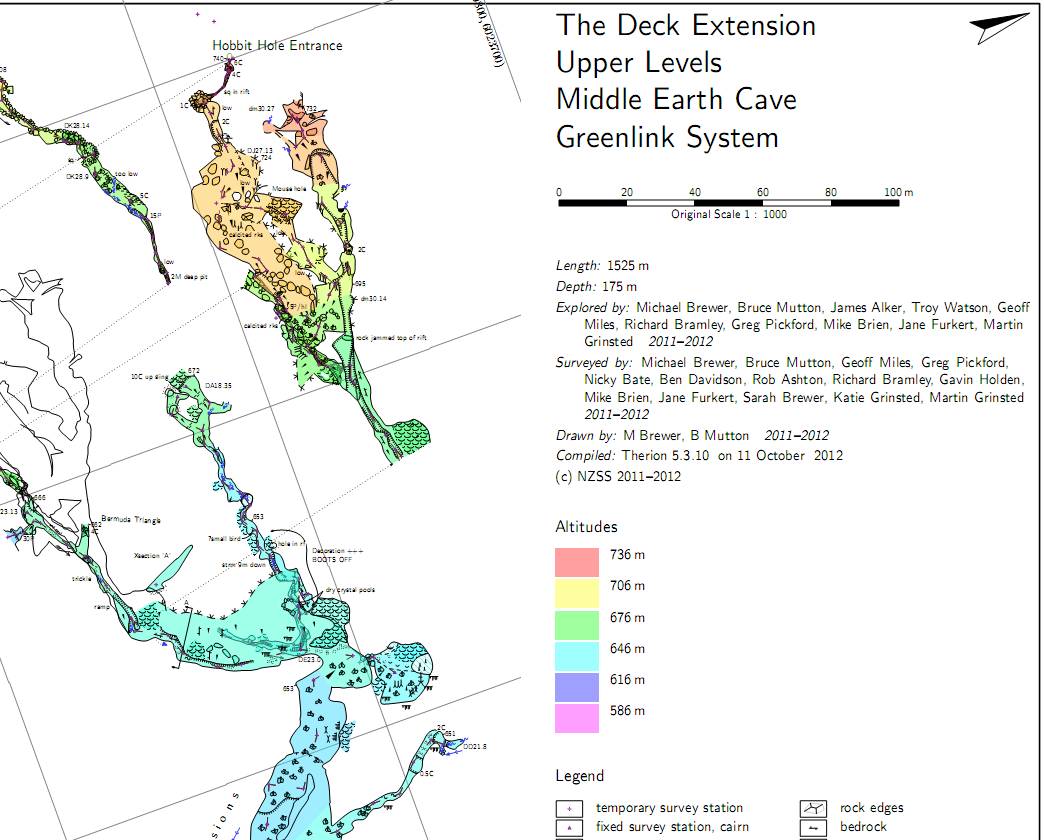

> Comparing 5.3.10 map with 5.3.16 map as attached.
>
>
>
>  Not sure if it might be a side effect of something else, as I think the
> colour range is OK sometimes (I think I noticed some irregularities with
> 5.3.15 but assumed I was imagining things at the time) – maybe the preview
> below triggers it?  - I might investigate further if I get time.
>
>
>
> Bruce
>
>
>  ------------------------------
>
> *From:* therion-bounces at speleo.sk [mailto:therion-bounces at speleo.sk] *On
> Behalf Of *Marco Menchise
> *Sent:* Saturday, 3 January 2015 8:45 a.m.
> *To:* List for Therion users
> *Subject:* [Therion] Altitude colors range
>
>
>
> Hello,
>
> I use to color maps by scrap altitude.
>
>
>
> Lately I noticed Therion color gradient starts from 0 m altitude to
> maximum cave altitude. Because caves don't reach 0 m almost all color range
> is unused and most scraps are colored with similar colors. If I remember
> correctly some time ago Therion used all color range because color gradient
> extended from minimum cave altitude (not 0 m) to maximum.
>
>
>
> Am I missing something? Is there a way to use all available colors?
>
>
>
> Thanks,
>
> Marco
>
> _______________________________________________
> Therion mailing list
> Therion at speleo.sk
> http://mailman.speleo.sk/mailman/listinfo/therion
>
>
