[Therion] Surface profile in elevation maps

[Bruce]

> From a cave diving perspective, it would be useful to add local zero

depth lines using a similar process. Is there an appropriate line type

to use for this?





I have not yet drawn a wet cave, but I've been experimenting with



line border:presumed -clip off



for flood levels.  You need to use 'adjust horizontal' for the second line
point to make sure the line stays horizontal after morphing.



The adding a bit of an area water inside a border:invisible line.

For a wet cave you might use area sump.

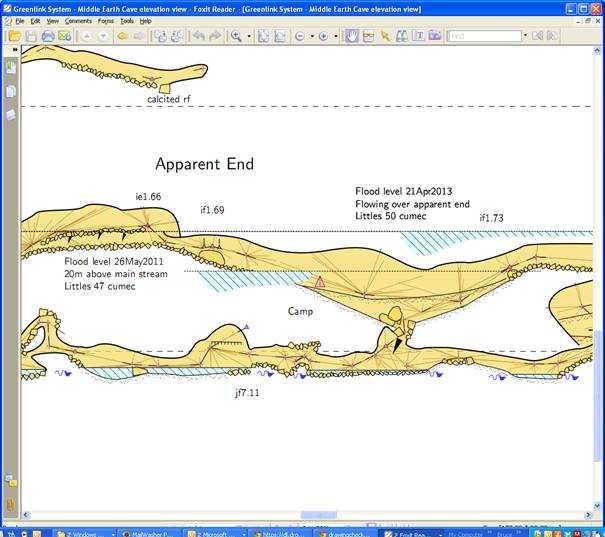

An example here



I have the flood levels in a separate map so I can easily toggle them on or
off.



Bruce
